Signature Layout
Vermont Campervan
Vermont: Adventure-Ready 170 AWD Sprinter Campervan
Wheelbase
170
Sits / Sleeps
4 / 4
Drivetrain
4WD
Base Vehicle
Mercedes-Benz Sprinter
The Design Philosophy
Build Overview
"The Vermont by Big Bear Vans is a custom-engineered 170 AWD Mercedes-Benz Sprinter designed specifically for multi-generational road trips, family adventures, and long-term off-grid travel. Built comfortably to seat 4 passengers and sleep 4 adults/children, the Vermont pairs an extended wheelbase layout with luxury living features—including an exterior power bike lift, double swivel seating, and Big Bear Vans' signature aluminum bathroom featuring a hidden full-height pantry."
The Design Philosophy
"The Vermont is a 170 AWD Sprinter campervan crafted for couples traveling with family or grandchildren who refuse to compromise on space, comfort, or utility. Equipped with powerful off-grid electrical systems, an expansive gourmet kitchen, custom exterior storage, an automated rear bicycle uplift, and our signature hidden bathroom pantry, the Vermont represents the peak of multi-passenger campervan design."
Quick Specs Overview
| Specification | Details |
|---|---|
| Base Vehicle | Mercedes-Benz Sprinter |
| Wheelbase | 170" High Roof |
| Drivetrain | All-Wheel Drive (AWD / 4WD) |
| Seating / Sleeping Capacity | Sits 4 / Sleeps 4 |
| Power System | 400Ah Lithium Battery Bank + 3000W Pure Sine Inverter |
| Water Capacity | 30 Gal Fresh Water / 20 Gal Grey Water + UV Filtration |
| Climate Control | 12V Air Conditioner + Glycol Diesel Water/Air Heater |
| Cellular Connectivity | WeBoost Cell Phone Signal Booster Antenna |
Standard Features
Exterior Equipment & Gear Storage

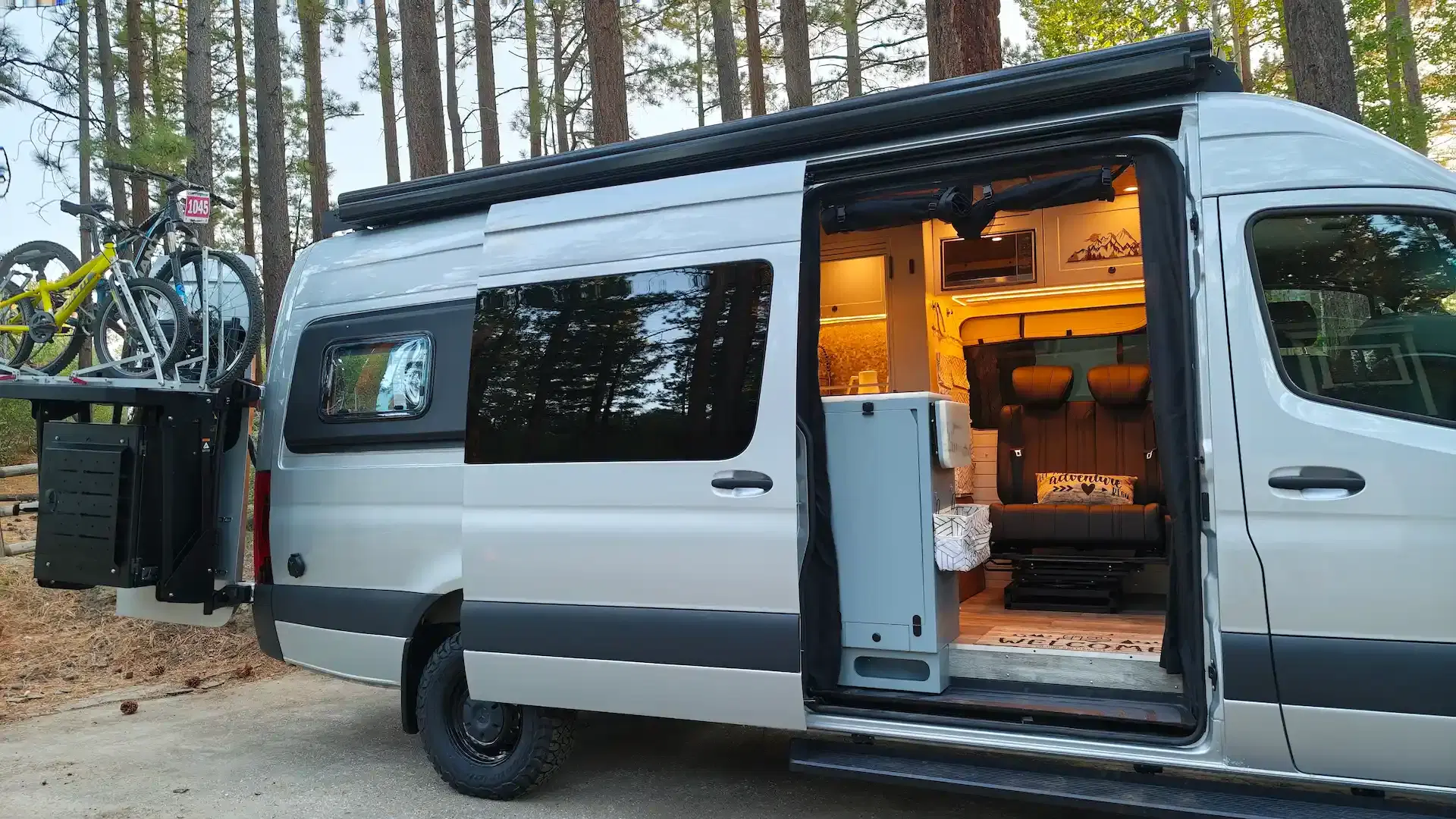

- • Electric Legless Awning: Extends effortlessly at the touch of a button without ground poles, creating instant shade without blocking side door foot traffic.
- • Dual Owl Vans Exterior Storage Boxes: Securely mounts on the rear doors to hold heavy tools, recovery gear, campfire supplies, or dirty outdoor equipment.

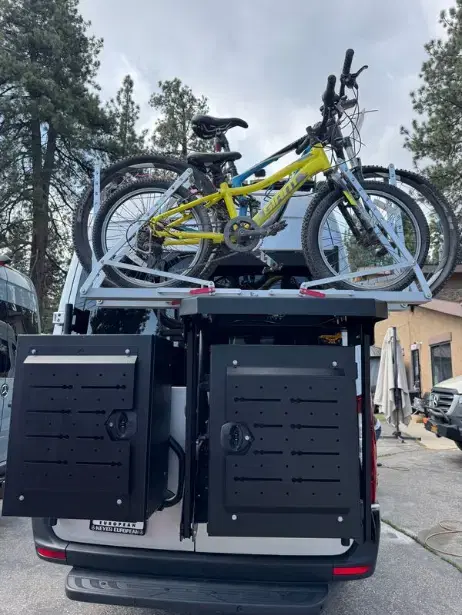

- • Powered Bicycle Uplift System: A motorized rear rack lift that effortlessly raises and lowers heavy electric bikes or mountain bicycles without manual strain.
- • Exterior Perimeter Flood Lights: High-lumen perimeter lighting illuminates your entire outdoor campsite for safe nighttime gear handling and cooking.
- • Rooftop Deck & Walkable Surface: Provides a sturdy platform for gear storage, tie-downs, observation, or mounting solar gear.
- • Rear Access Roof Ladder: Mounted securely to the exterior frame for safe, convenient access to the rooftop deck and cleaning solar panels.
- • 30A Shore Power Inlet: Plug into standard RV campsite connections or home outlets to rapid-charge the lithium system.
- • Electric Greywater Dump Valve: Discharge dirty sink and shower water effortlessly using interior electric switch controls.
- • Full Rear Bug Wall Screen: Keeps mosquitoes, flies, and midges out while allowing refreshing cross-ventilation through open rear doors.

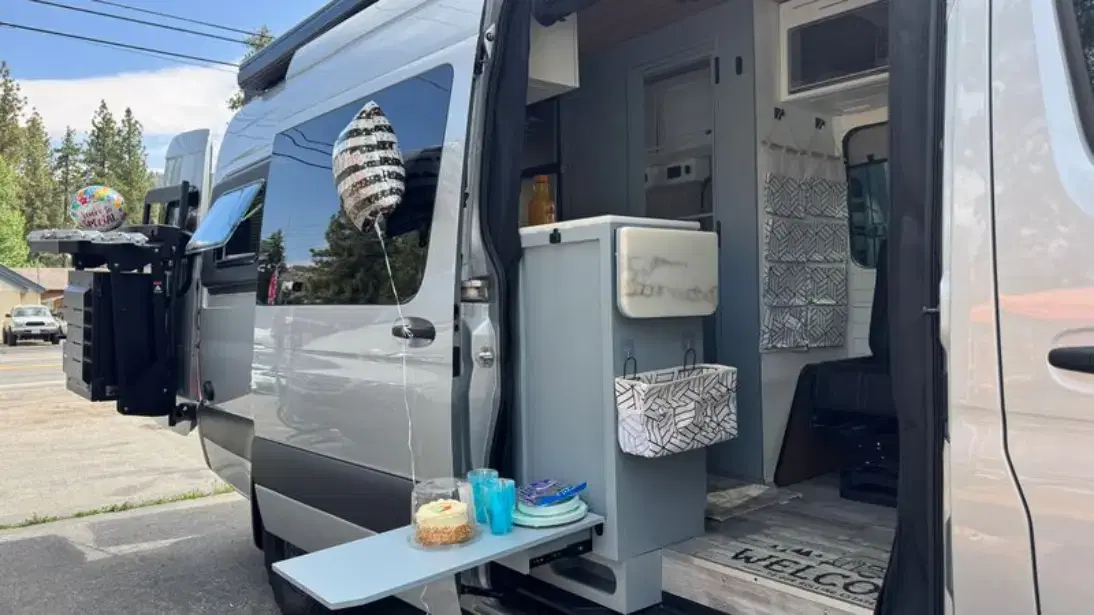

- • Drop-Down Outdoor Table with Drawer: Flips out from the side door to create a quick outdoor cookstation or workbench with dedicated utensil storage.
- • Insulated Double-Pane Awning Windows: Marine-grade double-pane glass provides maximum insulation against cold/heat while venting safely during rain.
- • 6-Inch Sturdy Running Boards: Heavy-duty, wide step boards along the chassis for comfortable entry and exit for children and adults.
- • WeBoost Signal Antenna: Boosts weak cellular signals in remote wilderness areas to ensure steady cell reception and data speeds.
Expanded Interior & Family Ergonomics
- • Over-the-Cab Overhead Storage: Custom-built upper shelf above the driver cab to store heavy blankets, pillows, and extra gear bags.
- • Integrated Floor & Wall L-Track Mounts: Commercial-grade tie-down rails installed throughout to securely strap down cargo, coolers, or gear bags.
- • Dual Swivel Dining Tables: Two independent adjustable swivel tables allow front and rear passengers to work, eat, or play games simultaneously.
- • Custom Upper & Lower Storage Cabinets: High-capacity cabinetry crafted to hold clothing, linens, and travel gear securely without rattling.
- • Insulated Window Privacy Covers: Magnetic blackout covers block outside light, regulate interior temperature, and guarantee total night privacy.
- • Signature Hidden Full-Height Pantry with Mirror: A full-height pull-out pantry clever concealed behind a sleek full-length dressing mirror inside the bathroom partition.
- • Vertical Hanging Clothes Closet: Dedicated tall wardrobe space designed to hang jackets, shirts, and formal wear without wrinkling.
- • Interior Privacy Divider Curtain: Separates the front cab and rear sleeping quarters for added sleeping privacy during multi-person travel.
Flexible Sit & Sleep Configurations

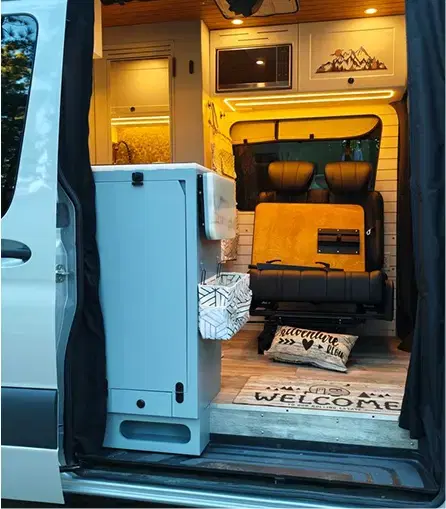

- • Double Swivel Passenger Seats (Behind Driver): Belted, comfortable rear seating for two additional passengers that swivel to face the main lounge area when parked.
- • Convertible Lower Dinette Bed System: A spacious lower seating lounge and table setup that transforms quickly into a full-sized bed.

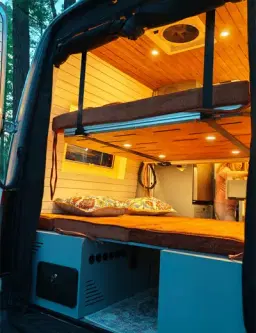

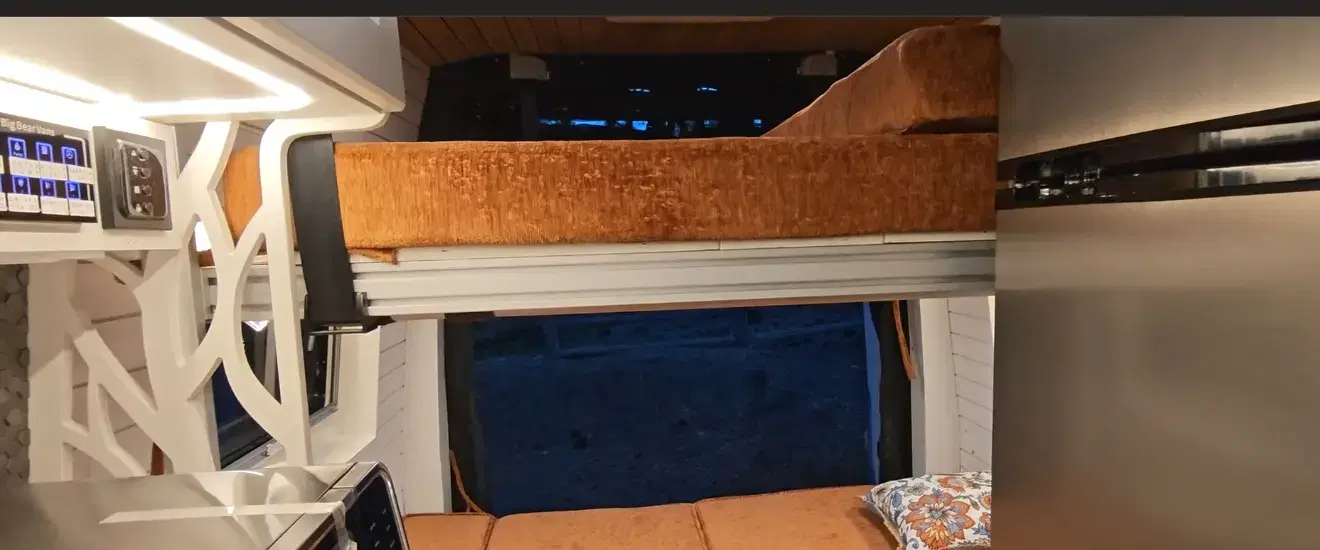

- • Automated Upper Elevator Bed: A motor-driven ceiling bed that lowers down at the push of a button over the lower lounge, creating a comfortable bunk-style layout for 4 sleepers.
Off-Grid Electrical & Climate Systems
- • 400Ah Smart Lithium Battery Bank: High-capacity lithium energy bank engineered to power air conditioning, induction cooking, and electronic devices.
- • 3000W Pure Sine Wave Inverter: Delivers clean 110V household power for laptops, hair dryers, microwaves, and power tools.
- • 110V Standard Wall Outlets: Strategically placed throughout the kitchen, seating areas, and sleeping berths for easy appliance plug-ins.
- • 12V USB-C & USB-A Fast Charging Ports: Dedicated device charging stations next to all seats and sleeping berths.
- • 12V High-Efficiency Air Conditioning: Runs directly off the lithium battery bank to keep the cabin cool during hot summer days and nights.
- • 12V High-Flow Roof Vent Fan: Exhausts cooking steam and draws in cool outside night air with minimal power draw.
- • Multi-Zone LED Accent & Reading Lights: Fully adjustable ambient lighting paired with warm directional bedside lamps for late-night reading.
- • Glycol Diesel Air & Water Heating System: Draws directly from the vehicle’s diesel tank to supply continuous interior cabin heating and instant hot shower water in cold conditions.
Complete Indoor Wet Bath & Plumbing
- • 30-Gallon Fresh Water Storage Tank: Ample water capacity for multi-day cooking, showering, and drinking away from hookups.
- • 20-Gallon Underbody Greywater Tank: Mounted beneath the chassis to collect wastewater without reducing interior living space.
- • Custom Aluminum Wet Bath: Fully sealed, durable aluminum shower unit designed for leak-proof daily showering and easy cleaning.
- • 12V Electric Dry-Flush Waterless Toilet: Hygenic, odor-free toilet system that seals waste automatically, eliminating the need for blackwater holding tanks.
Extended Gourmet Kitchen
- • Expanded Countertop Prep Space: Generous surface area for meal prep, cutting boards, and kitchen appliances.
- • Dual-Burner Induction Cooktop: Fast, flame-free electric stove allowing you to cook two dishes simultaneously using clean lithium power.
- • Matte Black Deep Stainless Steel Sink: Heavy-duty kitchen sink spacious enough to wash large pots, pans, and family dishes.
- • Multi-Stage UV Water Filtration System: Purifies incoming fresh water at the tap, ensuring safe, clean drinking water anywhere you travel.
- • Slide-Out Vertical Pantry: Tiered pull-out storage that keeps dry goods, spices, and cans neatly organized and accessible.
- • Over-the-Counter Wall Cabinets: Secure upper storage lockers for plates, bowls, cups, and food supplies.
- • Under-Counter Soft-Close Drawers: Deep drawers for cutlery, pots, pans, and cooking accessories.
- • 0.7 cu ft Built-In Microwave: Fast meal heating and defrosting for busy travel days.
- • 12V Refrigerator with Separate Freezer: High-capacity fridge keeps fresh produce, drinks, and frozen food cold on low daily power consumption.
