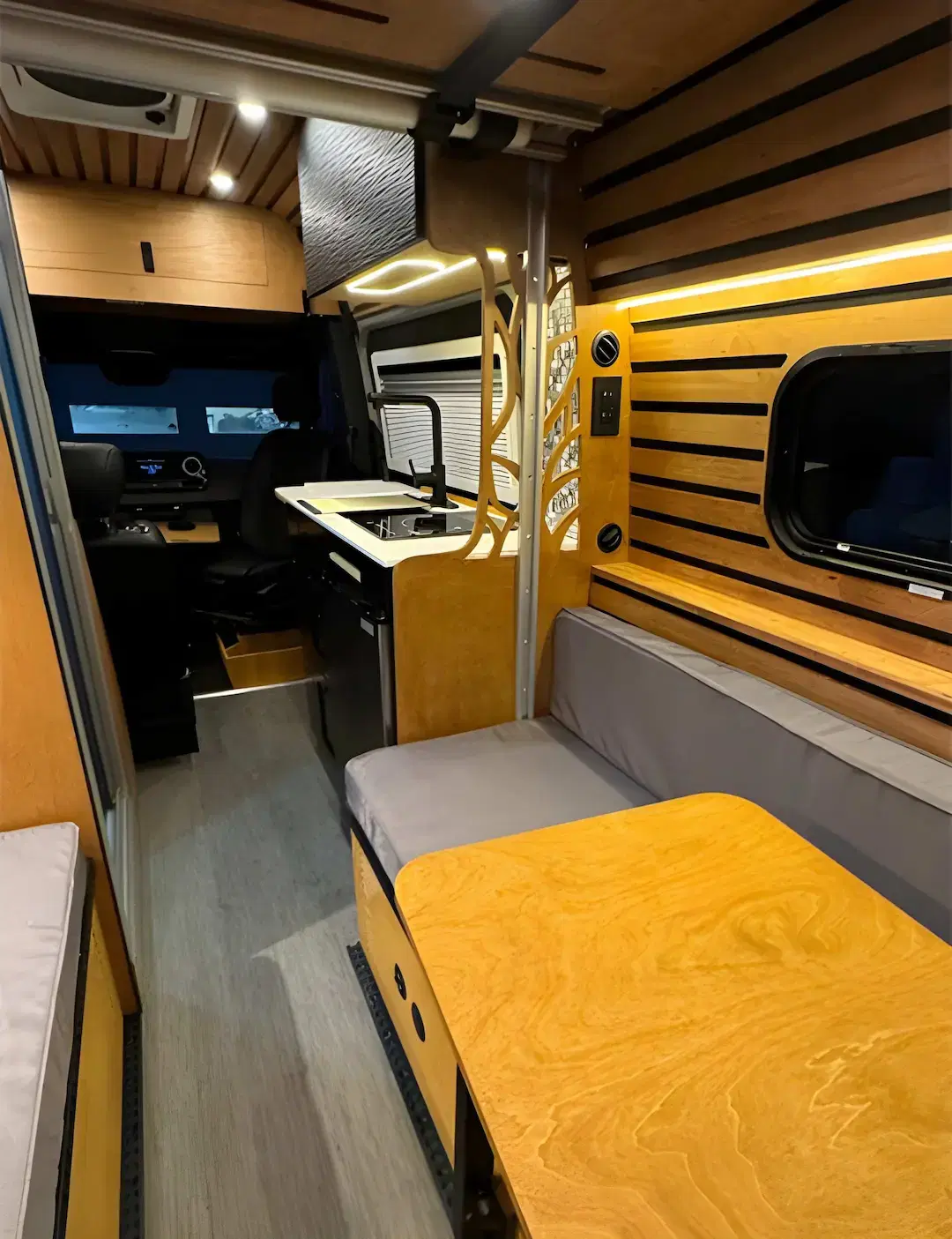

AWD new 2023 144 Sprinter Diesel
Launch 3D Configurator
Chassis
2023 Mercedes-Benz Sprinter
Wheelbase
144
Drivetrain
AWD
Capacity
5 Person
Limited 2026 Build Slots
Transmission
Automatic
Engine
Turbo Diesel
Exterior
Premium Finish
Interior
Custom Palette
The Design Philosophy
Build Overview
"Our Santa Monica van is a 144 AWD Sprinter built for 4 people. The van is fully off-grid ready, featuring 12V AC, 600Ah lithium batteries, solar panels, and a water-air diesel heater."
Build Standards
Every Component Considered
Paneling and Insulation
- •4 season Thinsulate insulation
- •one-of-a-kind slatted wooden ceiling and
- •walls panels, Marine style heavy duty flooring
Seating
- •Double bench behind the driver, reclinable, with extra storage and proper seat belts 5th extra click in seat is available
Sleeping
- •Elevator bed with expandable to the sides into the flares, custom mattress
- •Dinette transformer to another full size bed
- •Double seat up front that folds flat into bed
Kitchen
- •12v 3.2 cu ft fridge and freezer
- •Induction cooktop and built in microwave
- •Deep sink with an insert and drainer
- •High pull out faucet
- •Functional drawers and a pull out pantry
- •Pop up countertop extension, pull out
- •chopping board
- •Beautiful aluminum backsplash
- •Wall cabinet with shelves
Electrical System
- •600 amph lithium batteries
- •2000 w pure sine inverter & up to 350 w solar
- •shore 30 amp power
- •combined DCDC charger and solar controller
- •110 v outlets with USB C and A ports
- •12v reading light with USB charging ports
Water system
- •30 gal of fresh water
- •22 gal of grey water
- •Aluminum shower with L tracks and toilet (dry-flush or separating)
- •All metal faucet and shower head with on/off function
Heating and cooling
- •Glycol combined diesel water & air heater
- •12 v efficient A/C that works of the batteries
Exterior
- •Side ladder
- •Roof deck with a foldable hammock
- •Motorized awning
- •Double glazed awning style windows with built in black out curtains and mosquito nets
- •Flares raptor painted with insulated inserts
