Choosing The Right Sprinter Van For Custom Conversion
Learn how to choose the ideal Sprinter van model and features to create your dream custom conversion.
The Mercedes-Benz Sprinter has a versatile family of vehicles, each engineered to excel in a specific role. With multiple models, configurations, and capabilities, the selection can seem difficult.
In this guide, we'll simplify the options so you can choose the right Sprinter van for custom conversion.
Van Configuration & Model Selection
Wheelbase Options
SWB (Short): 144"
%201.webp&w=1080&q=75)
SWB (Short wheelbase)
144” wb (19.4 ft long)
UrbanEasy ParkEfficient
LWB (Long): 170"
%201.webp&w=1080&q=75)
LWB (Long wheelbase)
170” wb (22.5 ft long)
BalancedFamilySpacious

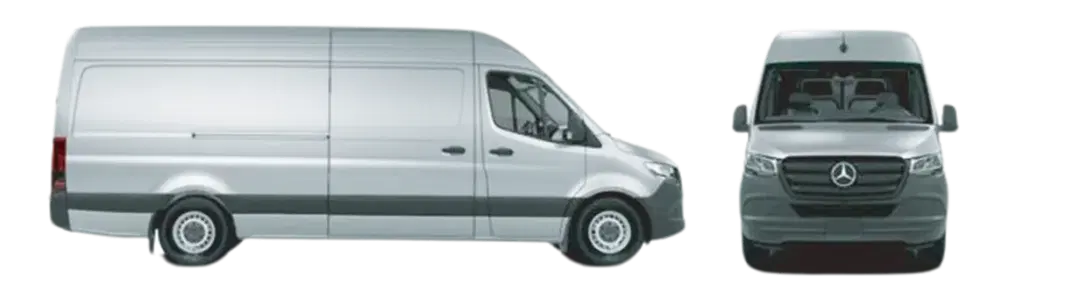

ELWB (Extra-Long): 170" Ext.
ELWB (Extra Long Wheelbase) 170” wb with a longer rear tail part (24.2 ft long)
Max SpaceFull BuildLarge
Roof Height Options
H1 (Standard)
68.5” interior - Limited standing room
BudgetGarageMPG
H2 (High)
79.9” interior - Comfortable for most users
ComfortPopularBalance

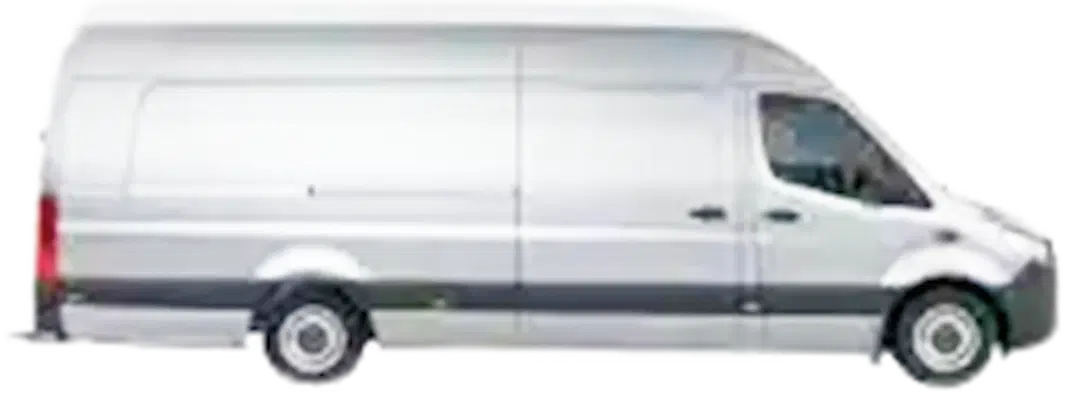

H3 (Super High)
89" Interior - Ample headroom for tall builds
TallLuxuryMax Room
Cargo Vs Crew Vans

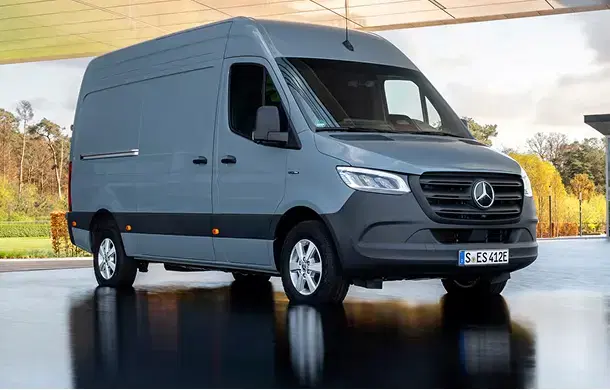

Cargo Van
The Cargo van prioritizes maximum cargo capacity with only a few seats.
Max CargoFew SeatsCustom

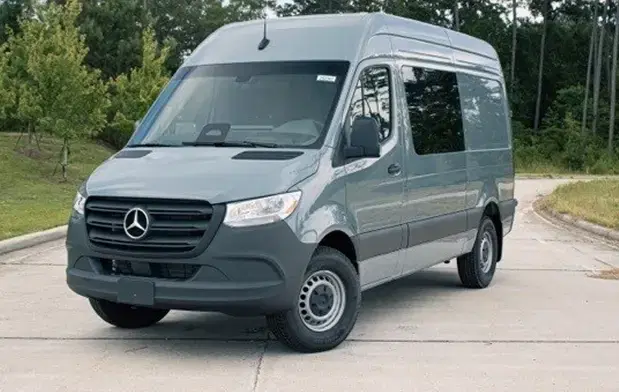

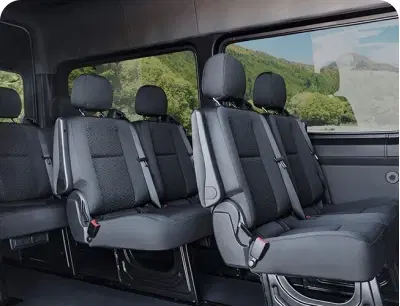

Crew Van
The Crew Van strikes a balance, offering more passenger seating and slightly less cargo space.
More SeatsReadyVersatile
Cargo Van vs Crew Van
Feature | Cargo Van | Crew Van |
|---|
| Seating | 1 row (driver + 2 passengers) | 2 rows (up to 5 passengers) |
| Windows | Minimal/Aftermarket | 4 solid glass windows (stock) |
| Interior | Bare Metal | Fabric ceiling, subfloor |
| Flexibility | Max cargo space | Removable 3-seat bench |
| Best For | Pure Cargo / Conversion | Hybrid use (cargo + gear) |
| Cost | - | $3000 extra |
2500 Vs 3500 & Dually
1
2
3
2500
(We Usually Build On These)
Lighter GVWR, Gross Vehicle Weight Rating (9,050 lbs), suitable for standard builds.
3500
Higher payload (GVWR: 9,990 lbs - 11,030 lbs), ideal for heavy conversions
Dually
(Dual Rear Wheels)
Higher payload (GVWR: 9,990 lbs - 11,030 lbs), ideal for heavy conversions
Manual Vs Electric Sliding Door
Aspect | Manual Sliding Door | Electric Sliding Doors |
|---|
| Operation | Physical effort required | Remote or manual operation |
| Convenience | Less convenient, especially on hills | Highly convenient, especially for drivers |
| Safety Features | None | Obstacle detection, automatic closing |
| Cost | Standard (no additional cost) | More expensive (e.g., $2,995 kits) |
| Reliability | Simpler, less prone to issues | More complex, potential for electronic issues |
| Quiet Operation | Noisy when closing | Quieter operation |
| Availability | Standard on all models | Option for eSprinter; aftermarket for others |
Key Features & Upgrades
Rear Steps, Hitch Options, & Towing Capacity
Rear Steps
Factory rear steps available on 2025 Sprinter models.
Step height ranges from 21 to 25 inches, depending on model.
Example: Cargo Van 2500 and 3500 variants.
Aftermarket rear steps also available:
- Improve accessibility.
- Offer added convenience for cargo loading and unloading.
Hitch Options
Class III Hitch:
- Available for Cargo Van 2500 models.
- Maximum tongue weight: 500 lbs.
Class IV Hitch:
- Available for 3500, 3500XD, and 4500 models.
- Maximum tongue weight: 750 lbs.
Towing Capacity
Cargo Van 2500:
- Towing capacity: Up to 5,000 lbs.
Cargo Van 3500, 3500XD, and 4500:
- Towing capacity: Up to 7,500 lbs.
Exterior Color Choices
Click to View Details

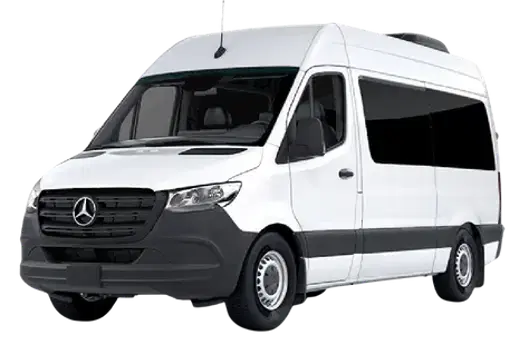

Arctic White
Click to View Details

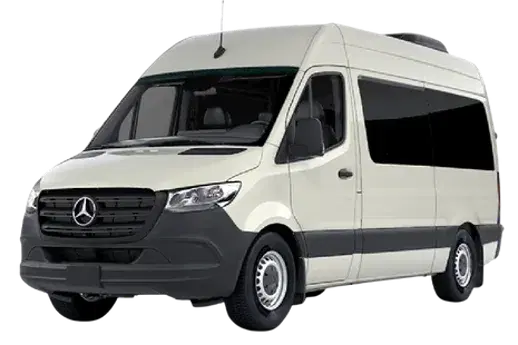

Pebble Grey
Click to View Details

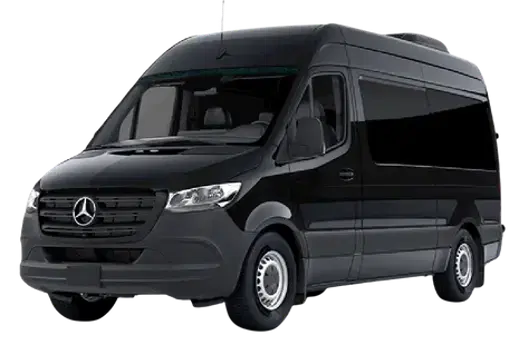

Obsidian Black
Click to View Details

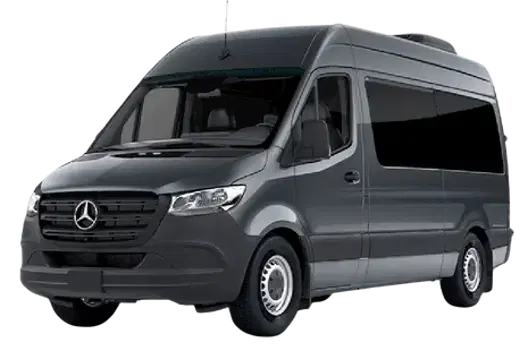

Tenorite Grey
Click to View Details

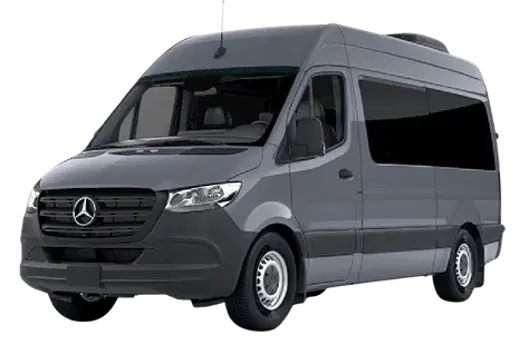

Graphite Grey
Click to View Details

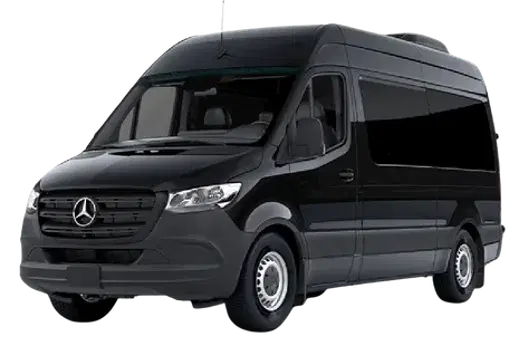

Jet Black
Click to View Details

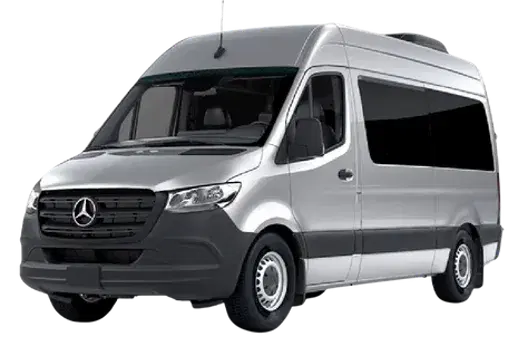

Iridium Silver
Click to View Details

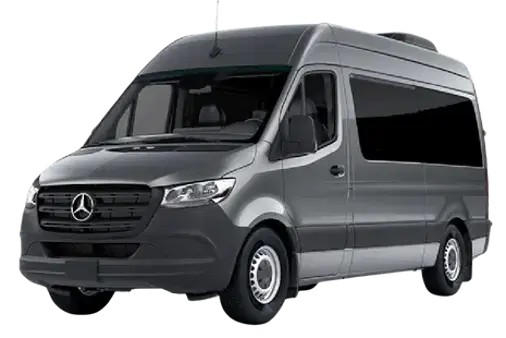

Selenite Grey
Click to View Details

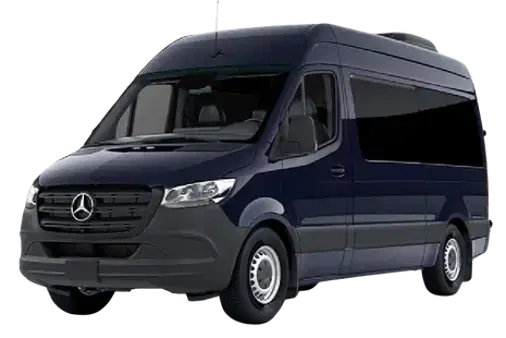

Black Blue
Click to View Details

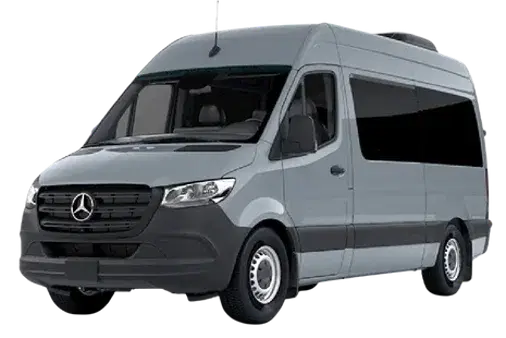

Blue Grey
Seat Options
Stock Seats

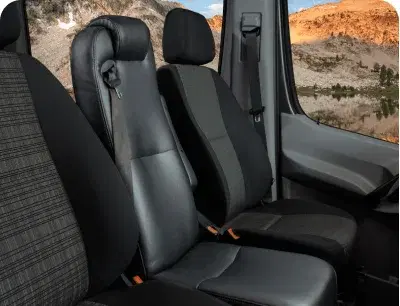

Cargo Van
*/- Typically seats 2–3 people
- Driver and front passenger seats
- Optional rear seat depending on model
Crew Van
*/- Hybrid of cargo and passenger van
- Seating for up to 5 people
- Front and second-row seating
- Remaining space optimized for cargo

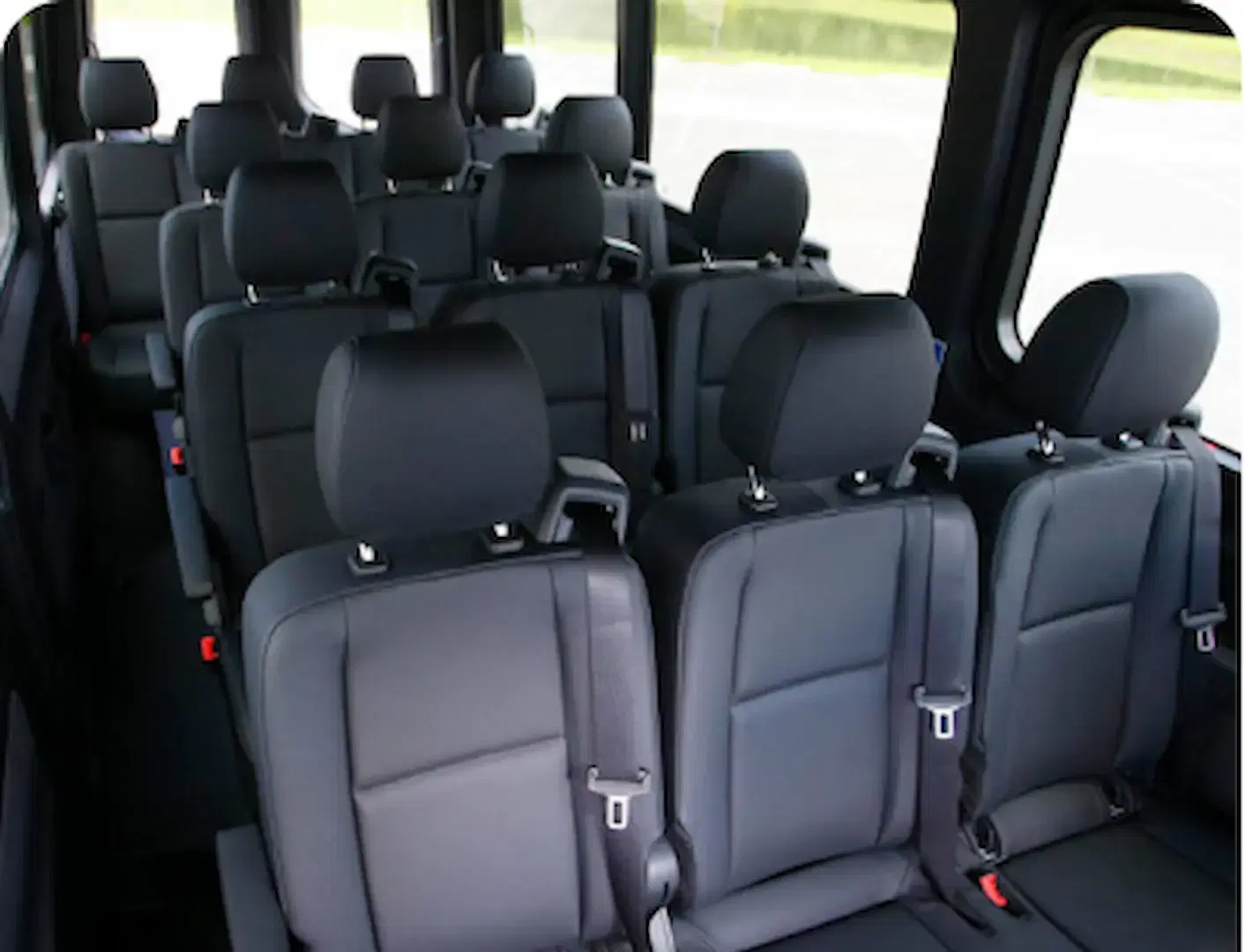

Passenger Van
*/- Designed primarily for transporting people
- Seating capacity for groups
- 12 seats with standard wheelbase
- Up to 15 seats with extended wheelbase
After Market Seats

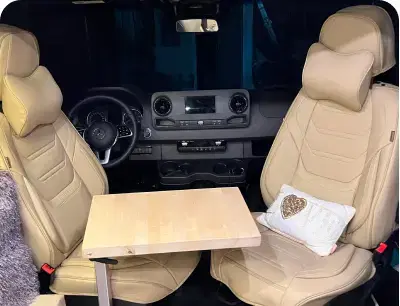

Comfort & Durability
*/- Made with high-quality materials
- Leather or top-grade fabric options
- Better padding and ergonomic support
- Designed for long-term use and comfort

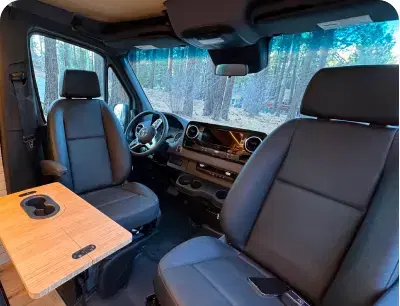

Functionality
*/- Aftermarket options for specific uses
- Swivel bases for camper vans
- Heavy-duty seats for commercial use
- Swivel adapters adjust seat height
- Lowered bases maintain accessibility

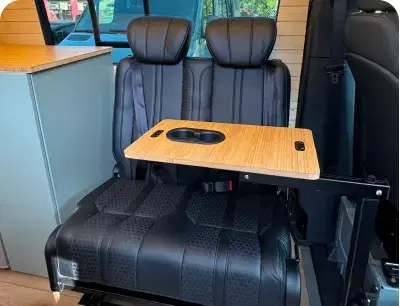

Customization
*/- Wide variety of seat styles available
- Swivel seat options
- Captain's chairs for luxury
- Bench seats for capacity
- Reclining and heated options
- Premium personalization features
Roof Tracks & 180-Degree Rear Door Hinges

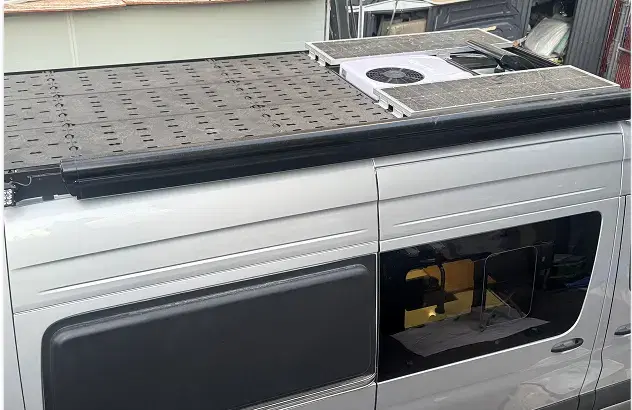

Roof Tracks
Factory roof rails support up to 440 lbs, compatible with crossbars.
Aftermarket options (Thule, Rhino-Rack) for customizable accessory mounting.
Ideal for cargo, bikes, and kayaks; durable and weather-resistant.

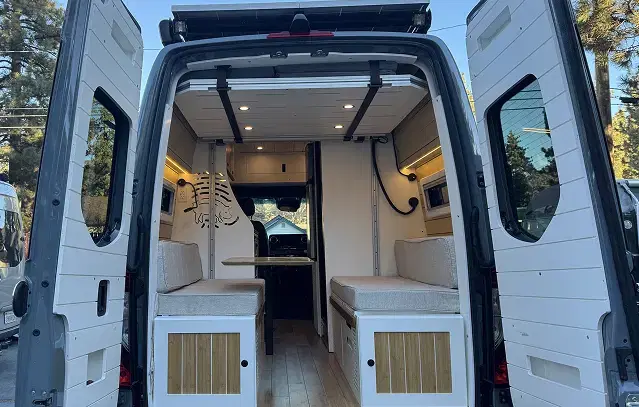

180-Degree Rear Door Hinges
Replaces 270-degree hinges for tire carriers or ladders.
Doors open parallel to the rear, fit 2019+ Sprinter (VS30).
OEM / Aftermarket available; easy install, enhances safety and durability.
2025 Sprinter Updates
2025 Mercedes-Benz Sprinter has updates in technology, safety, and electric options
MBUX Multimedia System
- 10.25-inch display with faster processing power.
- Upgraded menu navigation for improved user experience.
- More intelligent voice assistant: Can execute commands without saying 'Hey Mercedes.'
- Wireless Apple CarPlay and Android Auto integration.
- Supports over-the-air (OTA) software updates.
Active Brake Assist (Enhanced Functions)
- Intersection Function: Active up to 37 mph to avoid intersection collisions.
- Dangerous Overtaking Warning: Active up to 43 mph.
- Emergency Turning Assist: Active up to 25 mph for safer lane changes.
Steering Wheel
- Features capacitive sensors to detect hand presence.
- Enhances driver safety and engagement.
Sideguard Assist
- LED flash and acoustic alerts for vehicles on passenger side.
Moving-off Information Assist
- Detects vehicles within 12 feet front / 19.6 inches side.
- Active up to 6 mph with audio-visual collision warnings.
Active Lane Keeping Assist
- Improved with new front camera for better accuracy and response.
Digital Interior Mirror
- Roof-mounted HDR camera provides rear visibility regardless of window presence.
- Clear view in all lighting conditions.
Rear-View Camera Integration
- Hatched safety zone shown on central display for safe door opening.
2025 Sprinter Packages
Upgraded Packages and Standard Equipment
Winter Package Plus
- Heated front seats and steering wheel.
- Wet wiper system for better cold-weather performance.
Standard Equipment
- Tire pressure monitoring (front and rear for dual-wheel models).
- Rain sensor for automatic wiper activation.
- Entry handles on front doors.
- Passive child detection in crew and passenger models.
Mercedes me connect App:
- Free maintenance, accident/breakdown support.
- Remote locking/unlocking.
- Satellite view and trailer navigation support.
Drive Assist Package
- Includes multiple driver assistance features.
- 360-degree camera system for full vehicle visibility.
2025 eSprinter Updates
Electric Vehicle Specific Changes
Battery Options
- New high-capacity battery options for extended range.
- Faster charging capabilities (DC and AC).
- Battery position optimized for chassis stability.
Cargo and Payload
- 144-inch wheelbase:
- 319 cubic feet cargo space.
- Payload: 3,516 lbs.
- 170-inch wheelbase, high-roof:
- 488 cubic feet cargo space.
- Payload: 3,120 lbs.
Gross Vehicle Weight
- Up to 9,370 lbs across all eSprinter variants.
Premium Components
Tech & Conversion Ready Components
Stock Mercedes Swivel Seats – Uncompromised OEM Excellence
1
Seamless Integration
Designed for exact fit with Sprinter's interior, ensuring no gaps or alignment issues. Maintains factory aesthetics and functionality, enhancing resale value.
2
Safety Compliance
Includes airbags and meets federal safety standards, critical for passenger protection. Engineered to preserve structural integrity, unlike some aftermarket options.
3
Reliability & Durability
Built with high-quality materials, rigorously tested for long-term use. Backed by Mercedes-Benz warranty, reducing maintenance risks.
4
Ease of Use
Factory-installed, no additional setup or modifications needed. Smooth operation with minimal height increase (e.g., ~1 inch), preserving ergonomics.
ADVANCED TECHNOLOGY
Safety & Convenience Technology
Advanced systems designed to enhance your driving experience with cutting-edge safety and convenience features.

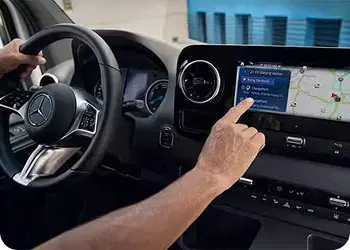

MBUX System
10.25-inch touchscreen, faster navigation. Wireless CarPlay/Android Auto, OTA updates. 'Hey Mercedes' voice control for ease.

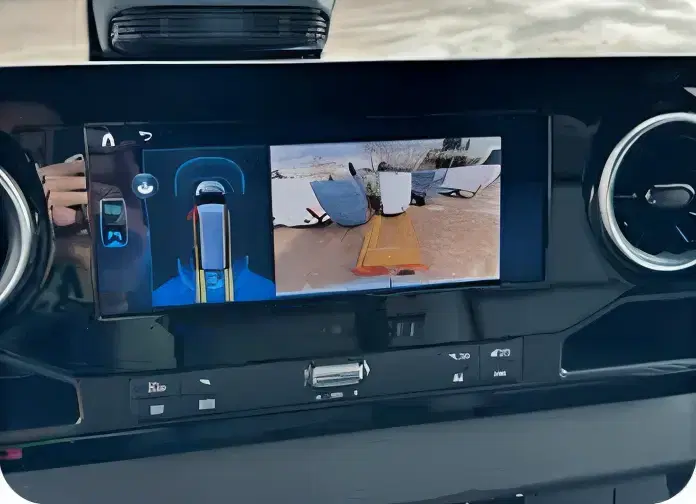

360° Camera
3D surround view, detects obstacles <12 ft. Shows rear door clearance, aids parking. Part of Drive Assist Package for safety.
Premium Benefits
Boosts safety with integrated assist systems. Simplifies urban driving, towing, camping. Mercedes me connect app enhances control.
Packages & Codes: Decoding The Sprinter Spec List
Explore the comprehensive range of Mercedes-Benz Sprinter packages designed to enhance your driving experience

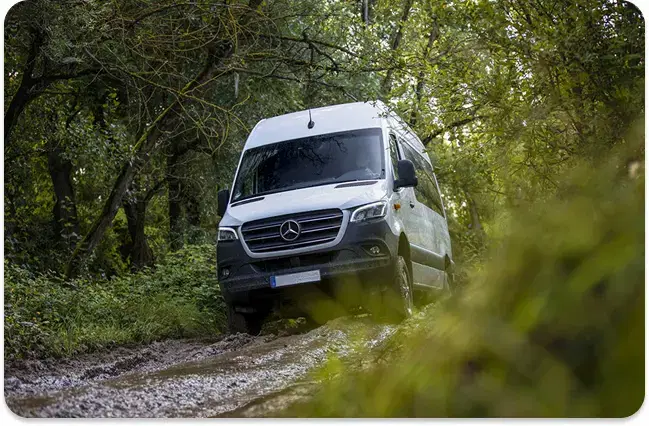

X55PKG
X55PKG All Wheel Drive Package
Optional AWD package for enhanced traction. With "Torque On Demand" system, up to 50% axle power split.
Key Features
Auto AWD activation, reverts to RWD when not needed.
Maintains clearance, angles for winter/off-road use.
Availability & Pricing
For models like Sprinter 2500, 3500XD Cargo Vans.
~$6,750 add-on (e.g., 2500 Cargo 144 WB).
Key Benefits
Better grip in snow, ice, or rough terrain.
Supports towing (5,000-7,500 lbs) with stability.

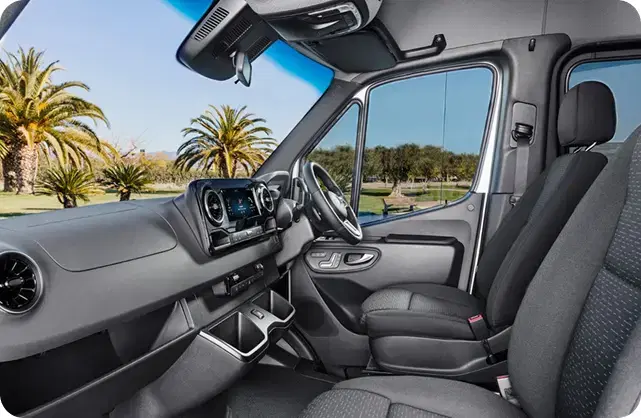

COOPKG
COOPKG COO-Basic Comfort Package
Boosts driver/passenger comfort affordably. Ideal for daily commercial or personal use in Sprinter vans.
Key Features
Comfort seats with lumbar support, adjustable head restraints.
Comfort overhead control panel for easy lighting/settings access.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$500-$1,000 add-on.
Key Benefits
Reduces fatigue on long hauls.
Factory-integrated, safety-compliant.
.webp&w=3840&q=75)

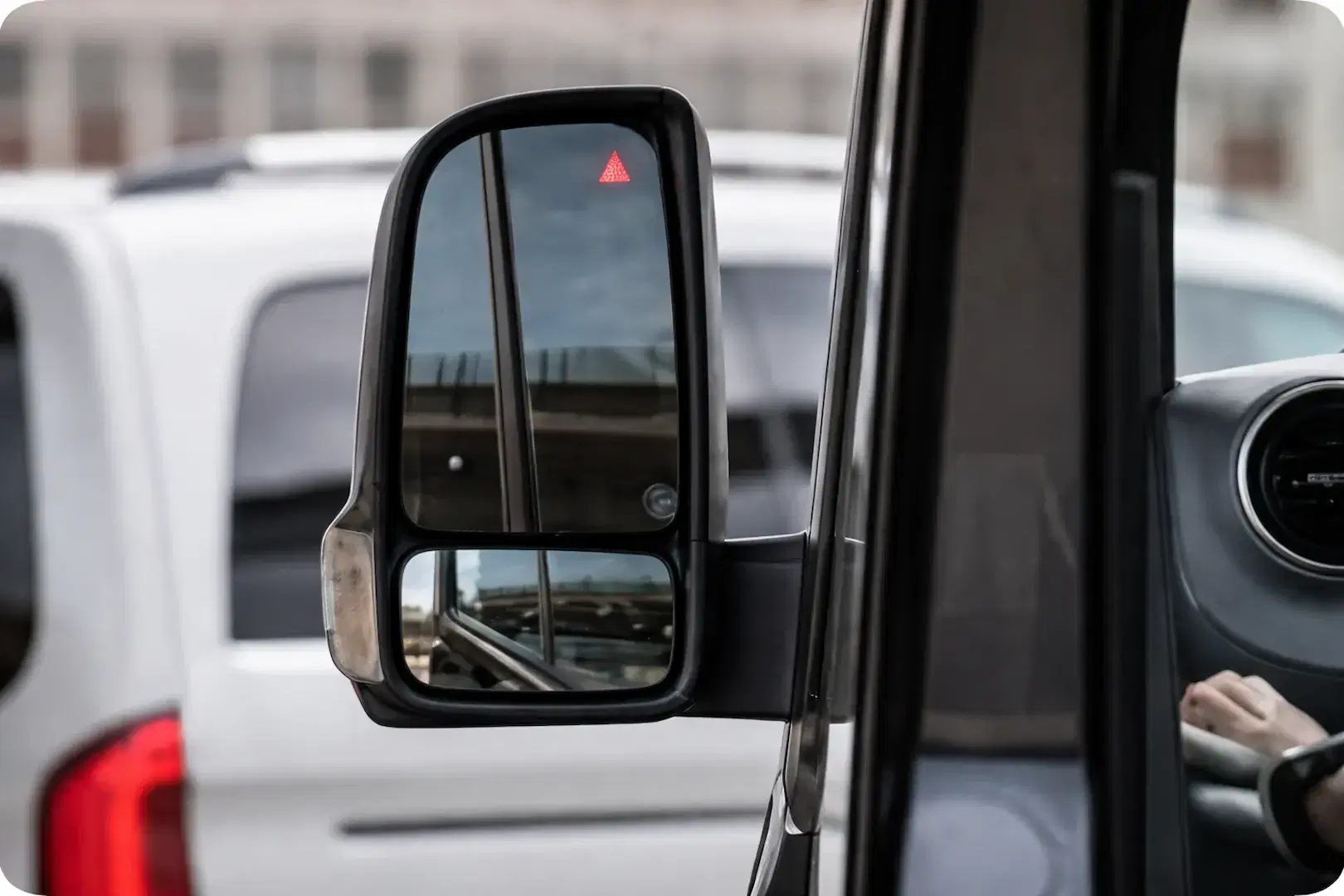

C01PKG
C01PKG C01-Driver Convenience Package
Enhances driver comfort and usability. Designed for efficiency during daily operations or long drives.
Key Features
Blind Spot Assist for safer lane changes.
Cruise control for relaxed long-distance driving.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$500-$1,200 add-on.
Key Benefits
Boosts safety with monitoring systems.
Simplifies driving tasks, reduces fatigue.
(1).webp&w=3840&q=75)
C03PKG

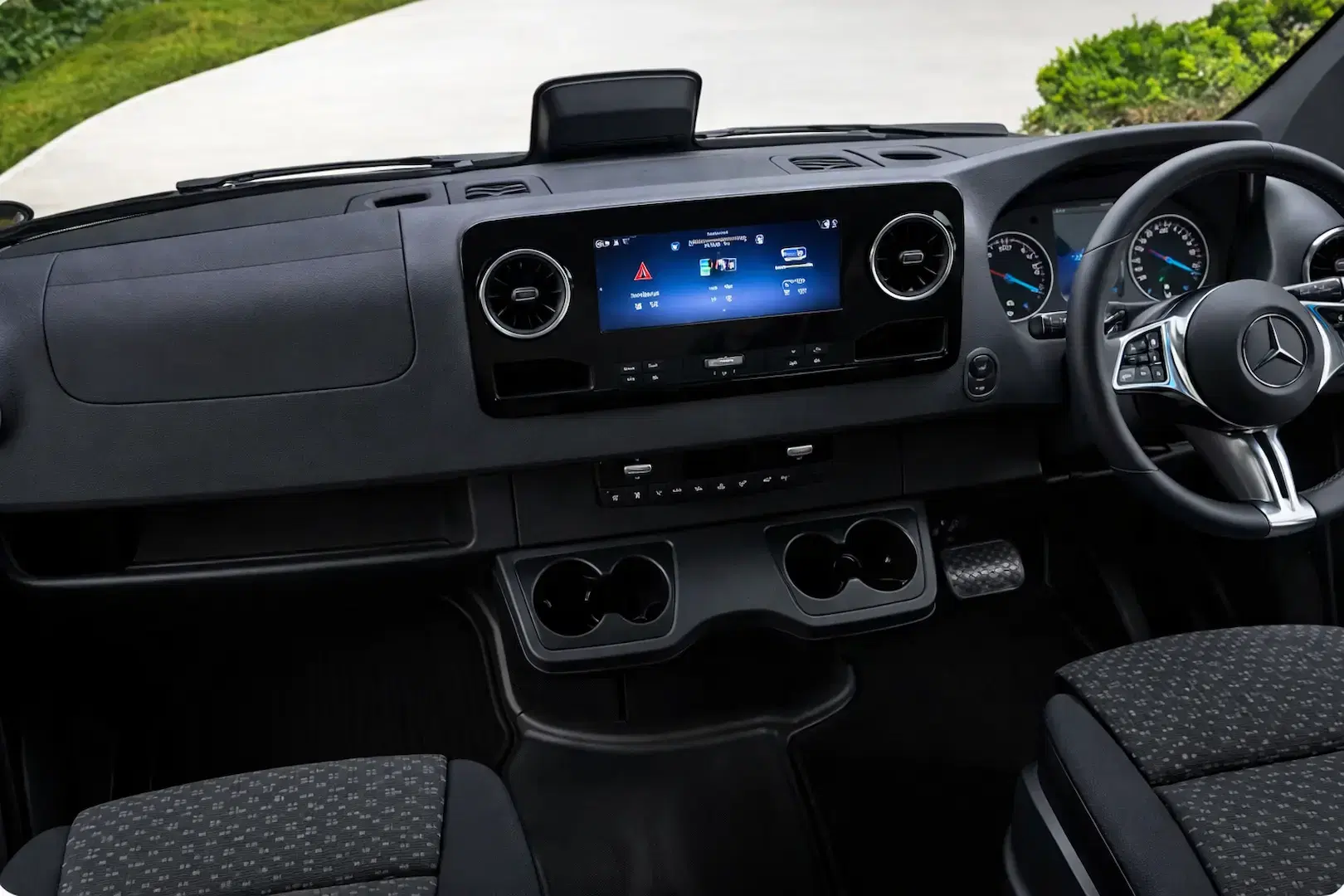

C03PKG C03-Premium Plus Package
Enhances technology and comfort for a premium driving experience. Tailored for drivers seeking advanced connectivity and safety features.
Key Features
10.25-inch MBUX touchscreen with navigation, wireless Apple CarPlay/Android Auto.
Wireless phone charging for convenience.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$1,500-$2,500 add-on.
Key Benefits
Seamless connectivity via MBUX.
Enhanced safety and luxury.
(1).webp&w=3840&q=75)

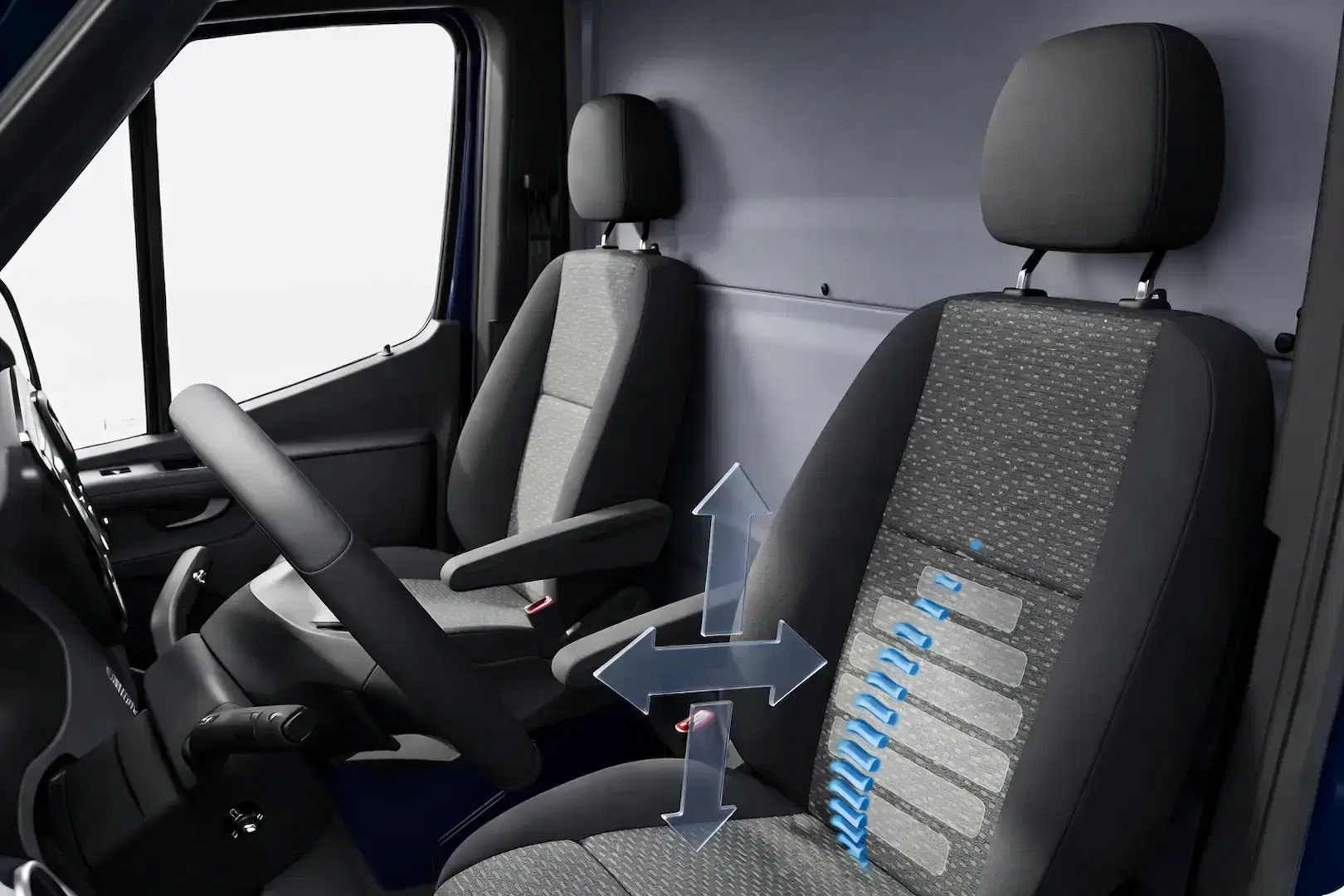

COSPKG
COSPKG COS-Comfort Package (Seats)
Upgrades seating for enhanced driver and passenger comfort. Focuses on ergonomic support for long drives or frequent use.
Key Features
Comfort driver/co-driver seats with 4-way lumbar support, adjustable height, and inclination.
Meets German AGR healthy spine criteria for reduced fatigue.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$600-$1,000 add-on.
Key Benefits
Boosts comfort for extended trips or commercial use.
Seamless factory integration, maintains safety standards.
(1).webp&w=3840&q=75)
CA2PKG

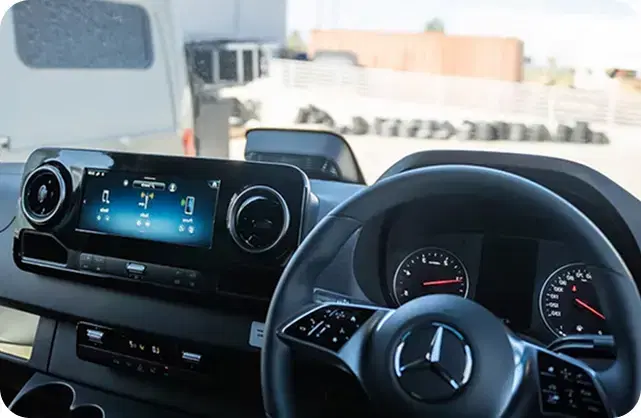

CA2PKG CA2-C02 Package (in Combination with C03)
Enhances safety and comfort, designed to complement the C03-Premium Plus Package. Adds targeted features for improved driving experience when paired with C03's advanced tech.
Key Features
Leather steering wheel for premium feel and grip.
Wet wiper system for better visibility in adverse weather.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$300-$700 add-on.
Key Benefits
Improves safety with lane assist.
Adds comfort with premium steering.
.webp&w=3840&q=75)
X13PKG

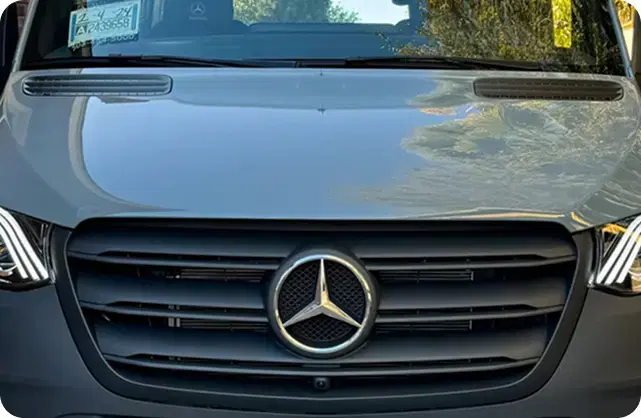

X13PKG X13-Exterior Package
Enhances the Sprinter's exterior aesthetics and functionality. Focuses on premium lighting and visibility for safety and style.
Key Features
LED high-performance headlights for brighter, energy-efficient illumination.
Partial LED tail lights for improved rear visibility.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$1,800-$2,000 add-on.
Key Benefits
Enhances safety with better lighting.
Modernizes look, boosts confidence.
.webp&w=3840&q=75)
X4ZPKG

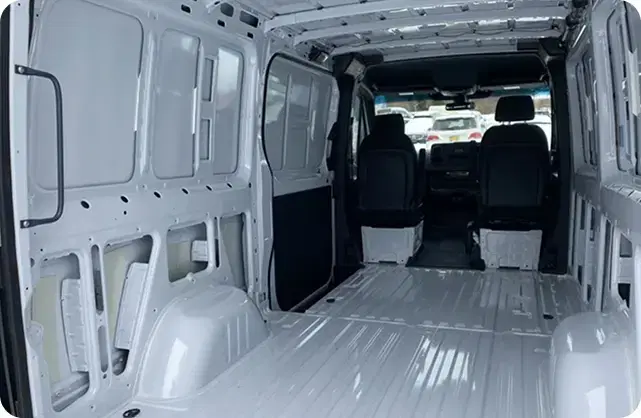

X4ZPKG X4Z-Interior Trim Upgrade Package
Enhances cabin aesthetics and functionality. Upgrades standard interior with premium materials for a refined look.
Key Features
Deluxe lower wall panels with improved finish over standard plastic.
Suitable as a base for fabric or custom upholstery in van conversions.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$800-$1,500 add-on.
Key Benefits
Boosts comfort, resale value.
Ideal for van conversions.
.webp&w=3840&q=75)
X67PKG

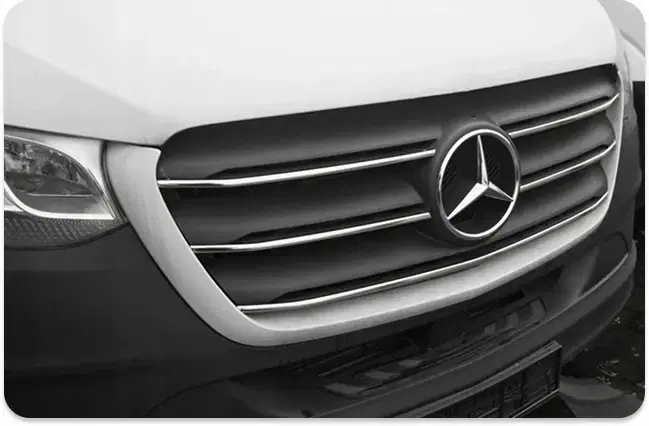

X67PKG X67-Chrome Plus Package
Enhances exterior aesthetics with premium chrome accents. Adds a polished, upscale look to the Sprinter's front grille.
Key Features
Chrome-plated radiator grille for a sleek, professional appearance.
Radiator grille frame in body color, blending style with vehicle design.
Availability & Pricing
For Cargo, Crew, Passenger Vans (2500, 3500).
Optional, ~$300-$400 add-on.
Key Benefits
Boosts branding or personal style.
Durable, weather-resistant finish.
.webp&w=3840&q=75)
Mercedes-Benz Sprinter Packages & Specifications
Decision Factors
Budget & Specs
Cargo Van Options
The blank canvas for maximum build potential.
Sprinter 2500 Cargo Van
PopularStarting at $52,000
- Starting at $52,000 for RWD and $70,000 for AWD
- Versatile option for substantial cargo space
Sprinter 3500 Cargo Van
Heavy DutyStarting at $57,000
- Starting at $57,000
- Increased payload capacity
Crew Van Options
Combines passenger transport with cargo utility.
Sprinter 2500 Crew Van (144" WB, High Roof)
$60k - $70k
- Starting at approximately $60,000 - $70,000*
- Combines passenger transport with cargo utility
Sprinter 2500 Crew Van (170" WB, High Roof)
Starting at $61,310
- Starting at $61,310
- Larger cargo space with seating for up to 5
Conversion Budget
The cost to turn the van into a home.
Plan for interior build, exterior upgrades, and custom features (e.g., $100,000 -$160,000)
Estimated Range
$100k - $160k
Keyes European Discount
Save $5k - $10k
MATCHING VAN SPECS TO YOUR CONVERSION GOALS
1
2
3
Define Your Goals
PURPOSE
Identify primary use (e.g., weekend trips, full-time living, off-grid).
Key Van Specs
SPECS
Consider size (WB), roof height, drivetrain (2WD vs. 4WD), and fuel type.
Feature Alignment
MATCH NEEDS
Match specs to needs (e.g., high roof for standing, 4WD for terrain).
Bespoke Conversions
Our Custom Build Process
Click on any stage below to explore the details of our craftsmanship.
Vehicle Sourcing
Bring your Sprinter for inspection, or let us source a discounted new van via our Mercedes dealership partnerships that perfectly matches your needs and requirements.
Immediate
1 Month
Collaborative Design
Define needs via Zoom, visualize with 3D renderings, and refine until your vision is perfect.
Engineering & Planning
Optimize safety and functionality with engineers, then approve final blueprints and premium materials.
2 Months
Every step is designed to tailor the van to your lifestyle
We work hand in hand with our clients to ensure that we are producing something that is according to the requirements and expectations of our clients. Our aim is to bring your imagination into reality using our expert craftsmanship, years of experience, and state-of-the-art technology.
3-4 Months
Build & Assembly
Craft interiors (2 months), upgrade exteriors (1 month), with weekly progress updates.
Delivery & Beyond
Master your van with a walkthrough and test drive, backed by comprehensive warranties and 24/7 support.
Ready for Adventure

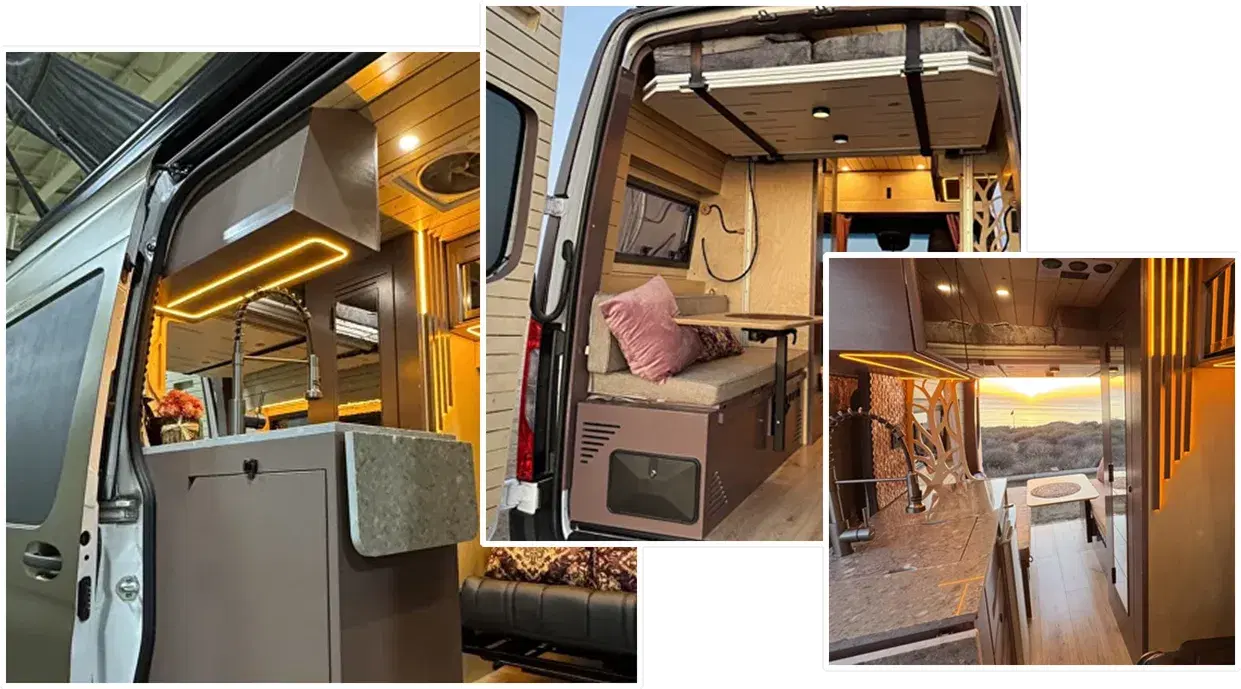

Our Pre-Build Vans
Click the van below to request a spec sheet and reserve your adventure vehicle today.
